Compose your map for print.

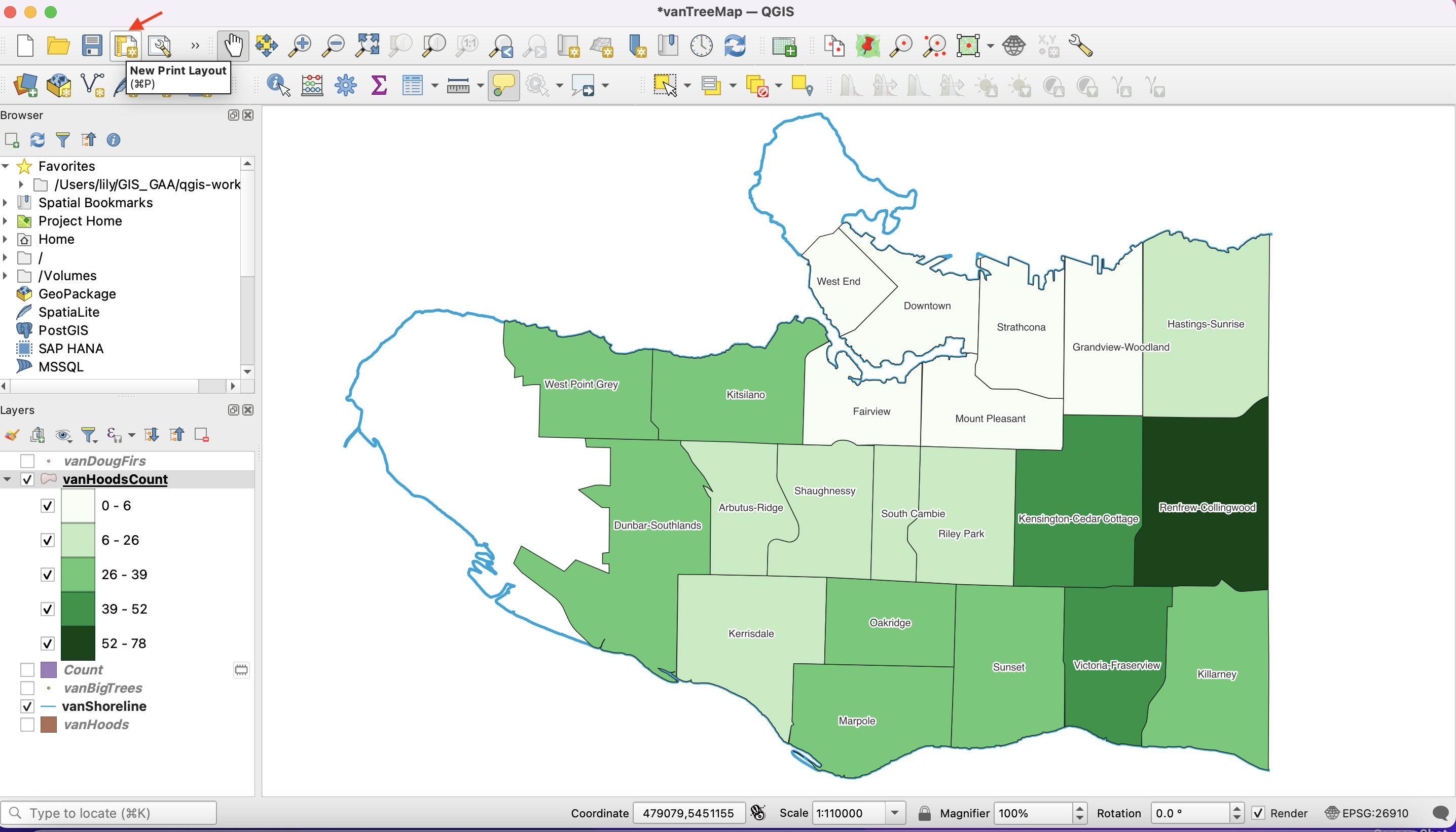

In the Toolbar, click on the New Print Layout button.

Find new print layout button

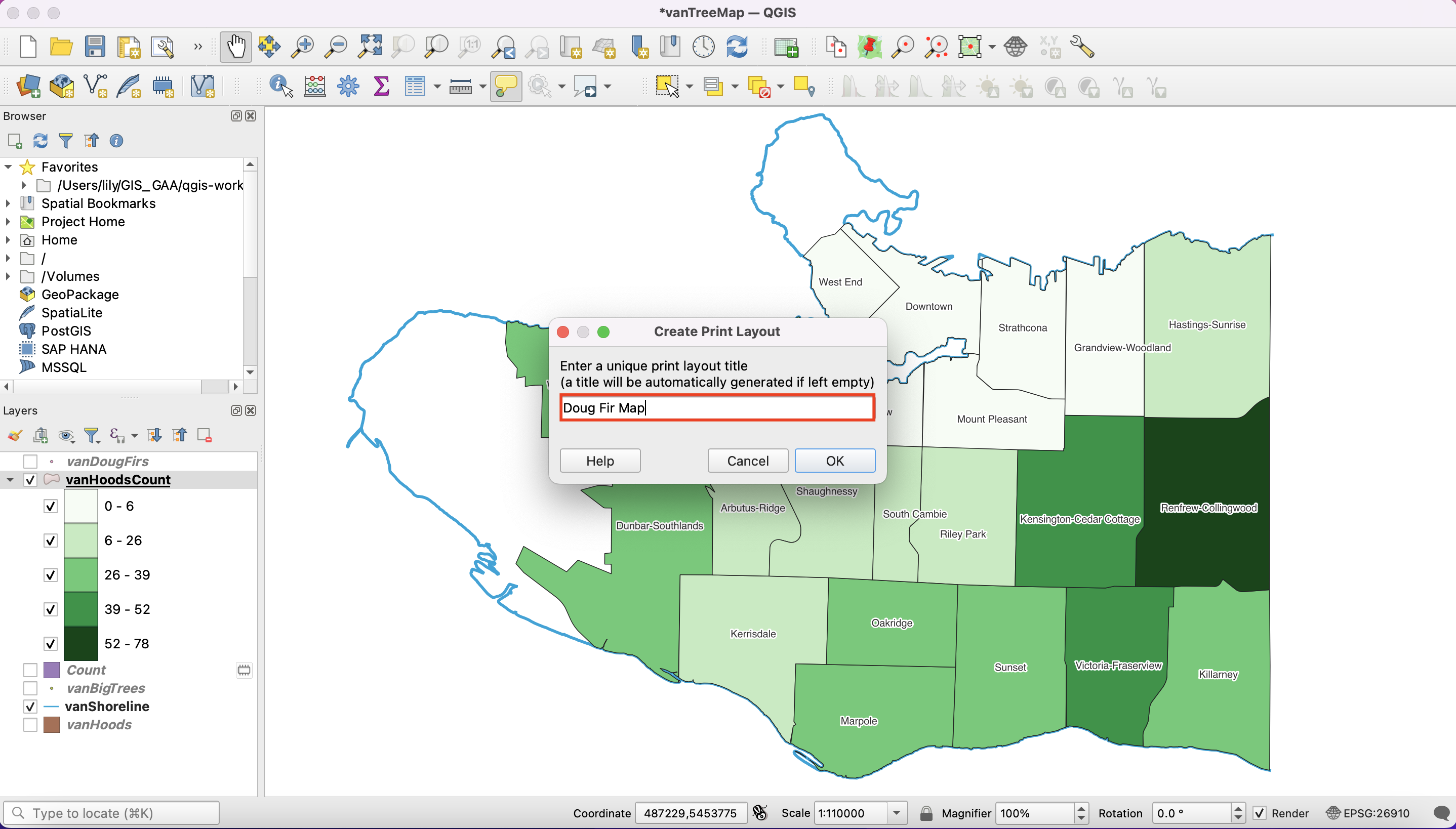

In the pop-up window, name the layout Doug Fir Map.

Type in Doug Fir Map

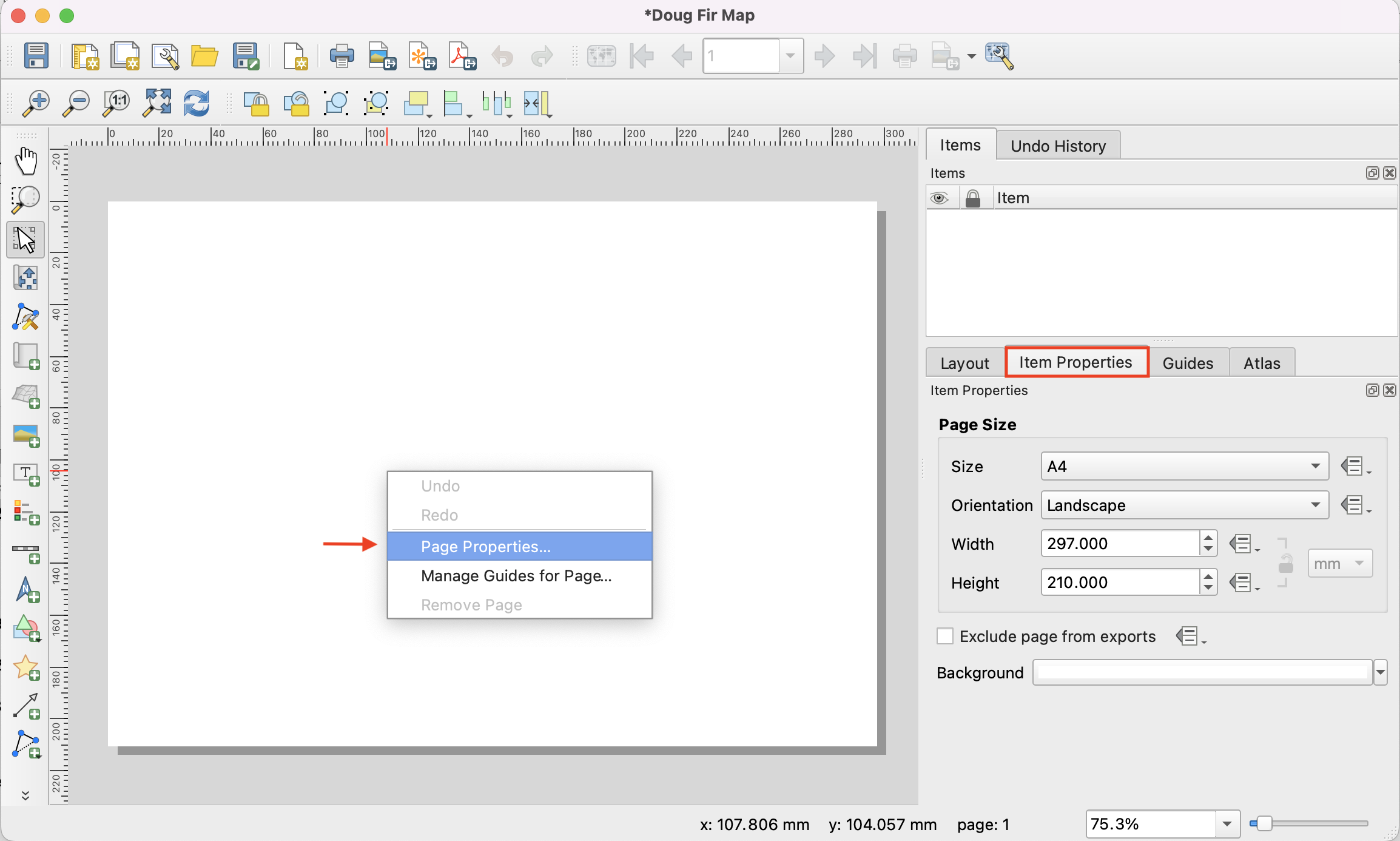

Right-click on the resulting page and select Page Properties. On Item Properties, change the layout to your desired dimension.

New print layout Doug Fir Page Properties

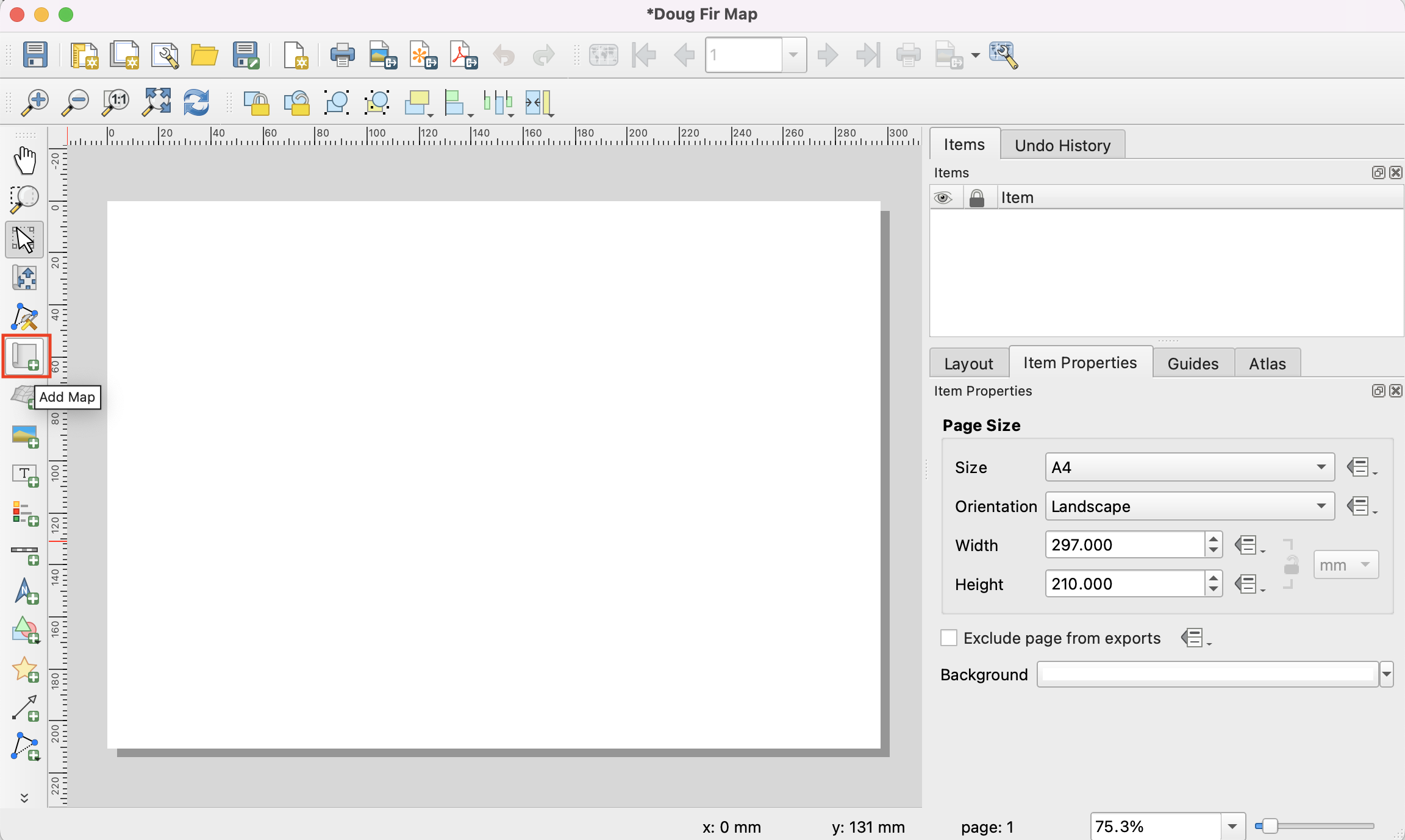

Using the Add new map button, add a new map to your layout, by clicking on the white canvas with the left button.

New print layout Doug Fir Add new map button

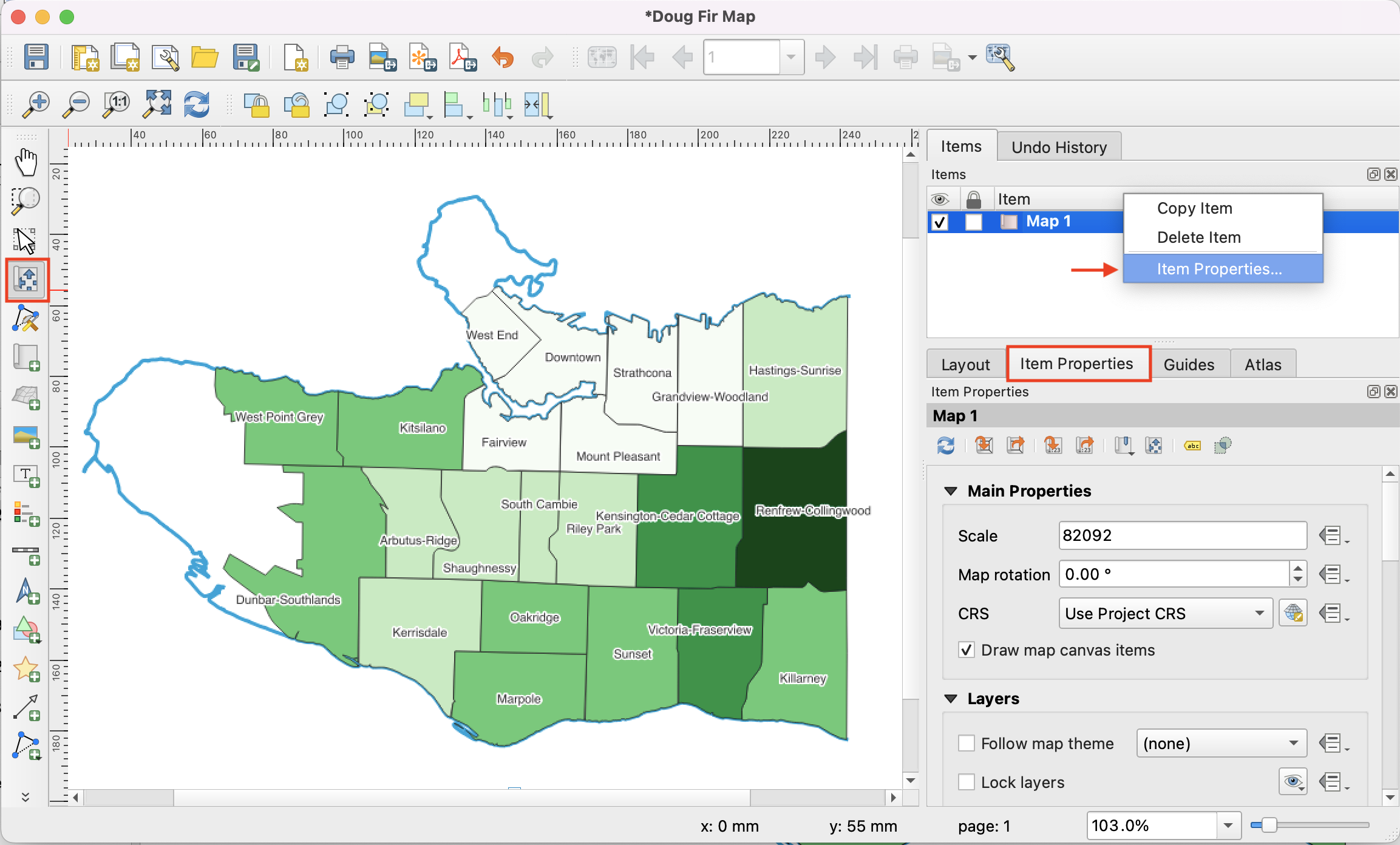

Click anywhere in the top left corner of your layout and drag diagonally across the page to add your map. Under Items, right click Map 1 and inspect Item Properties. Add the desired setting and press OK. You can also fine tune your map’s placement using the Move item content button.

Fit map and move item

Add a legend, scale bar, north arrow, and title.

Legend

You’ll need to add context to your map using some cartographic elements.

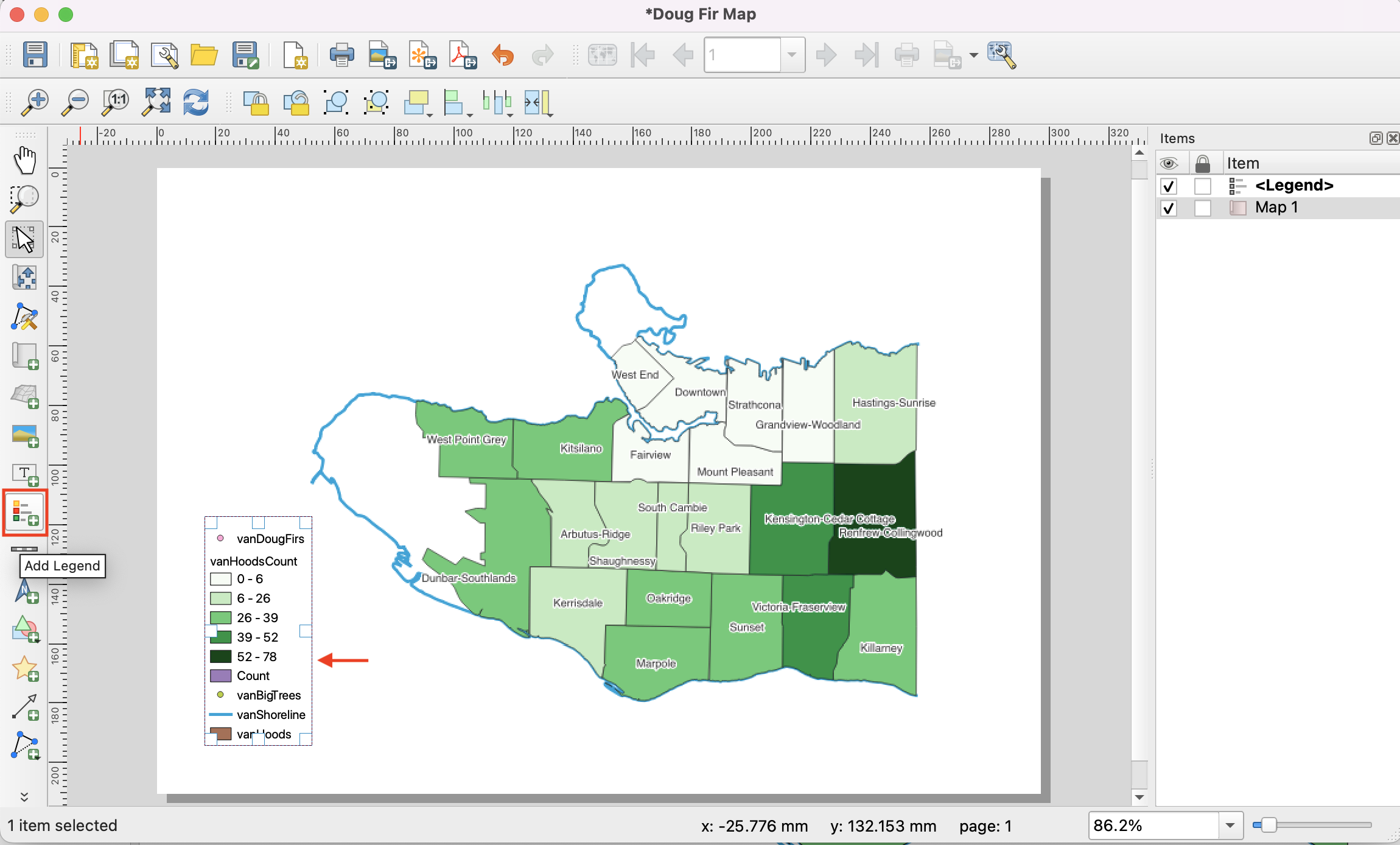

Using the Add legend button, click and drag a box in the area you would like to place the legend.

Douglas Fir map New legend

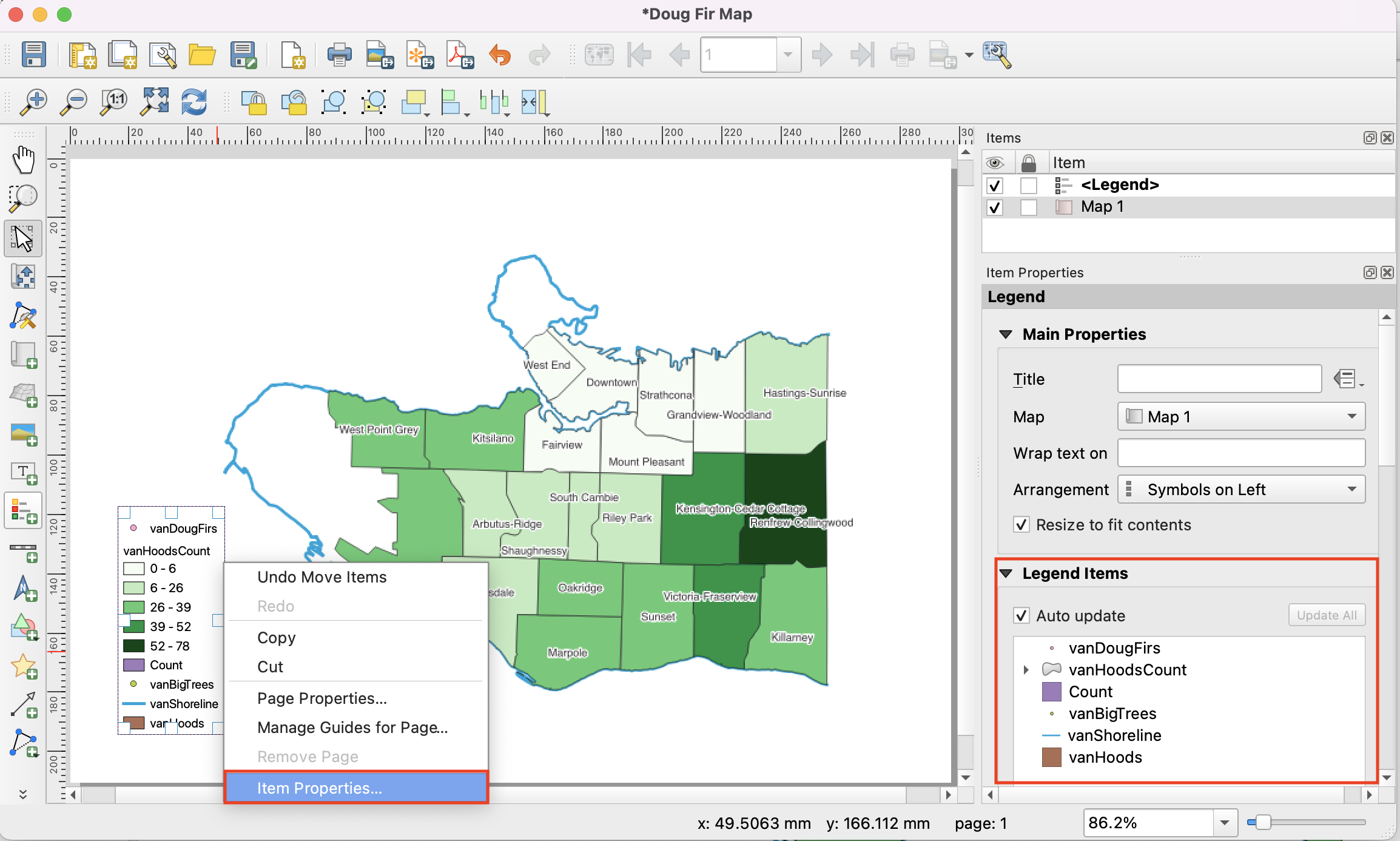

Right-click your legend and select Item Properties.

Doug Fir Map item properties

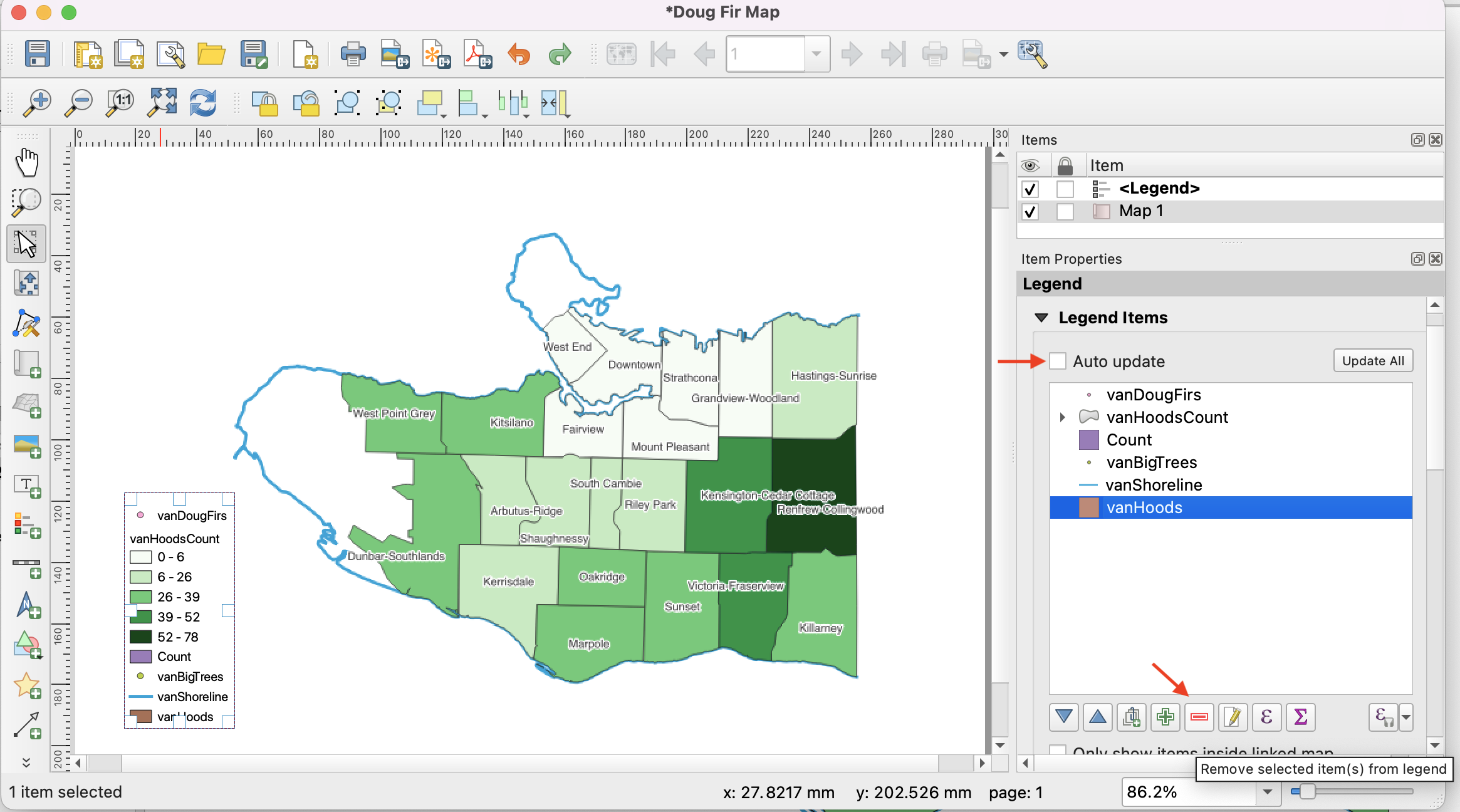

Only features symbolized by your map should be included in your legend. We will therefore remove all but vanShoreline and vanHoodsCount from our Legend Items. In the Legend Items section, first uncheck the ‘Auto update’ box. Now select a layer you want to remove from your legend and click the red –– button at the bottom.

Doug Fir Map remove legend items

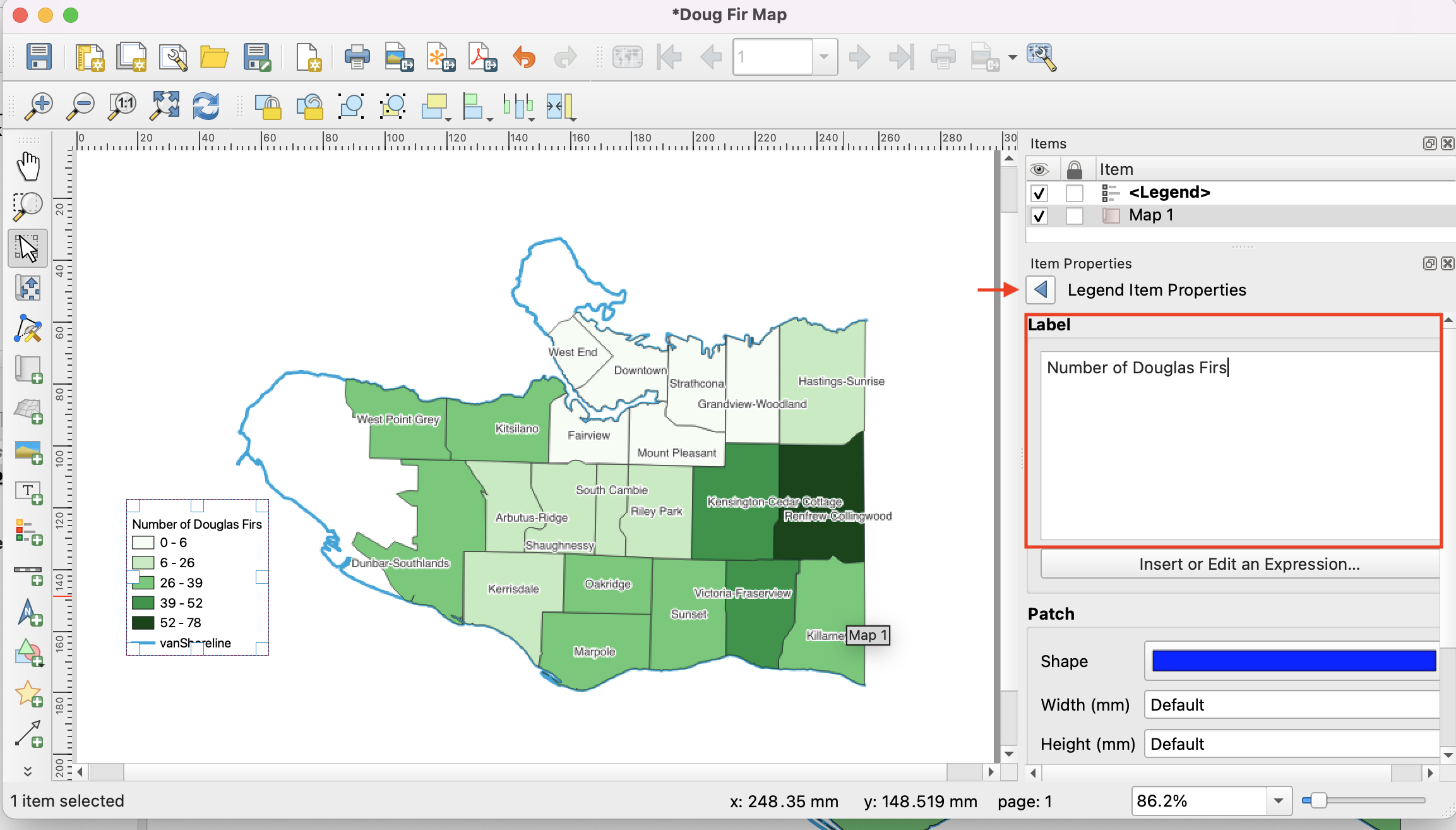

You should also rename vanShoreline and vanHoodsCount to something meaningful to your map’s audience. To rename a legend item, simply double click and type in the text box that opens. Click the < back arrow to return to Legend Item Properties.

Doug Fir Map rename legend items

Scale Bar

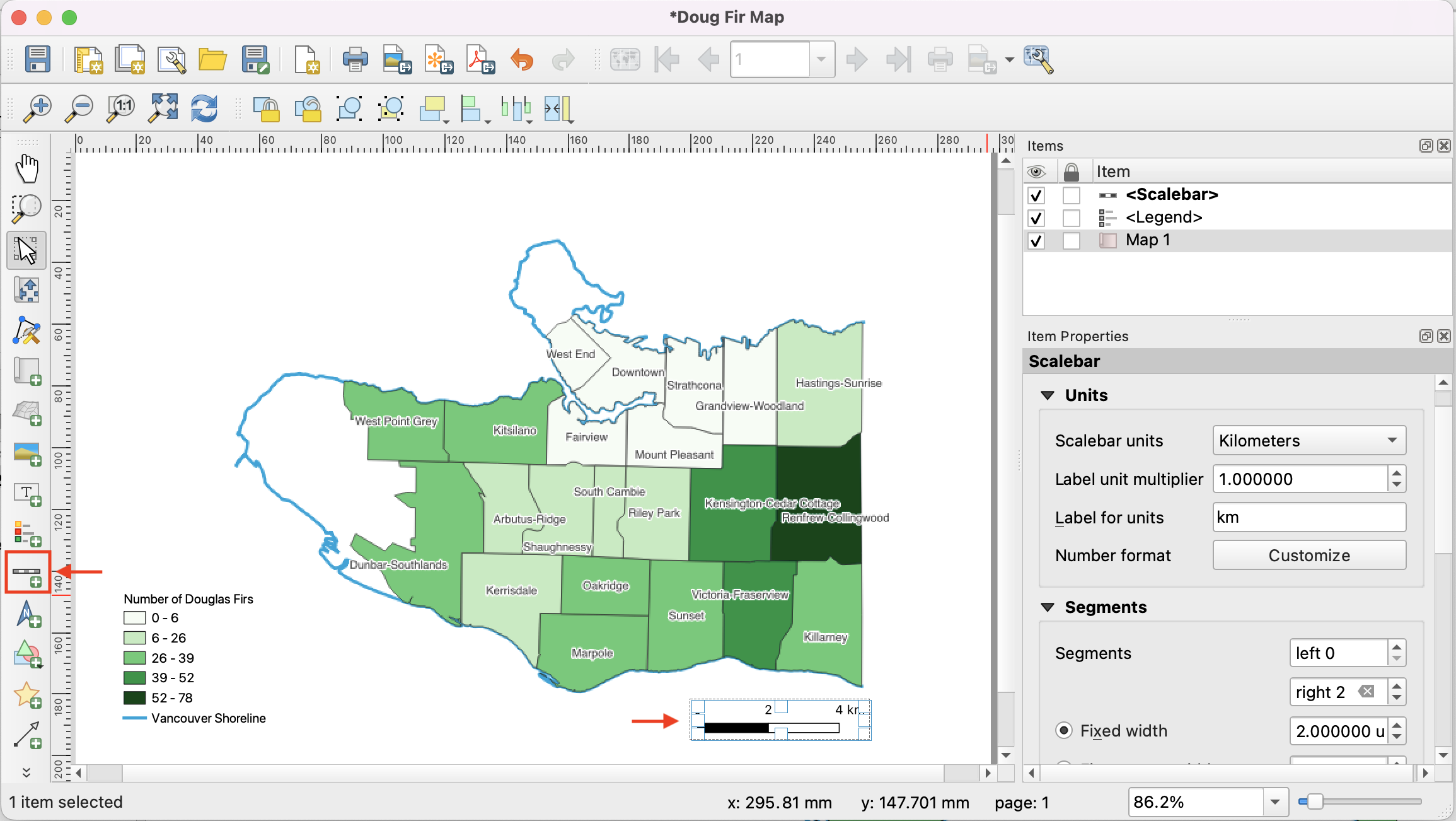

Click on the Add scale bar button, and click and drag on the map layout to create a bar. You may adjust the style in Item Properties.

Doug Fir Map scale bar style

Title

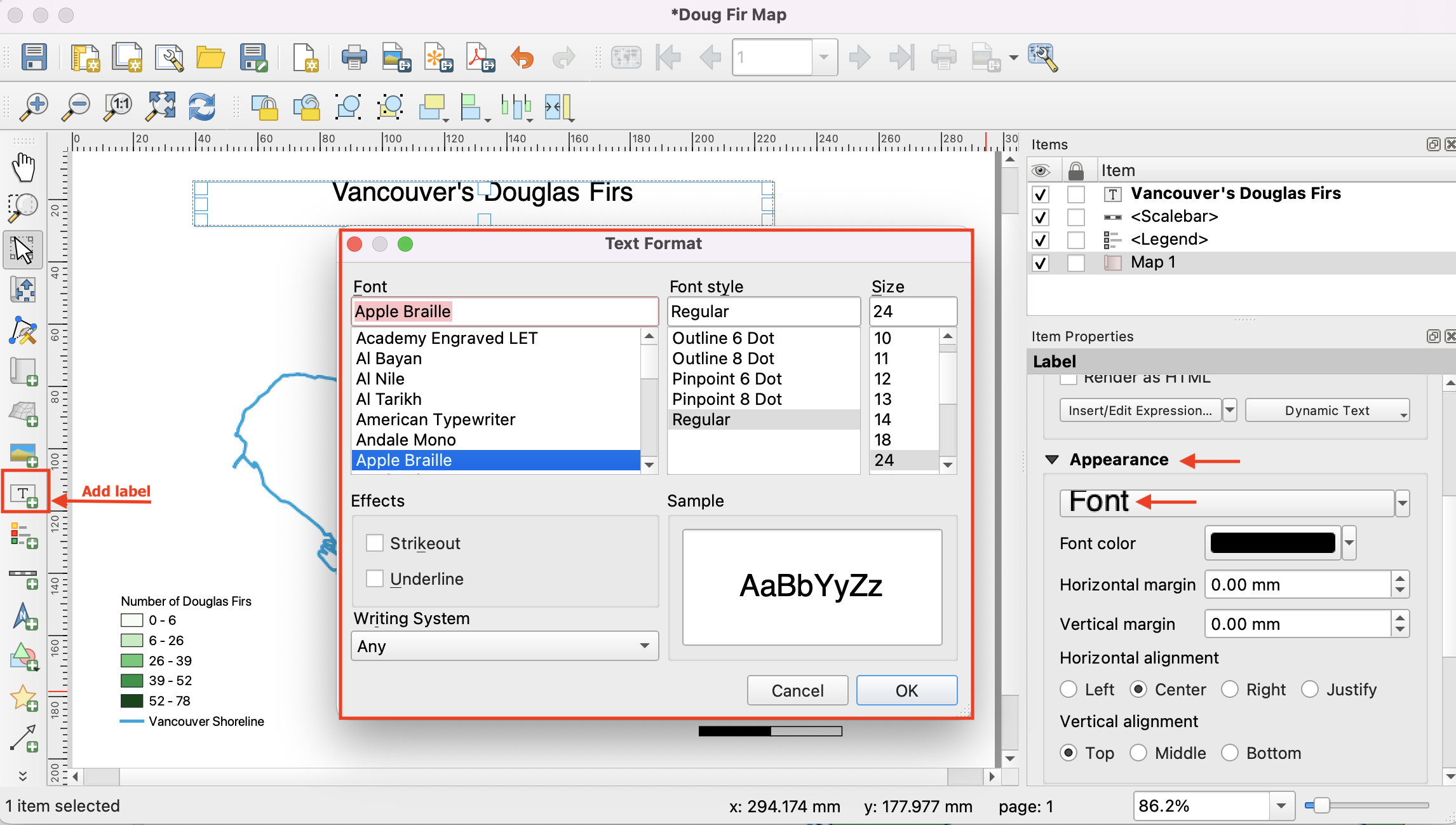

Using the Add label button, add the title: Vancouver’s Douglas Firs. In Item Properties, scroll down to Appearance and click ‘Font’. In the pop up window you can adjust the font and size of your title.

Doug Fir Map title

North Arrow

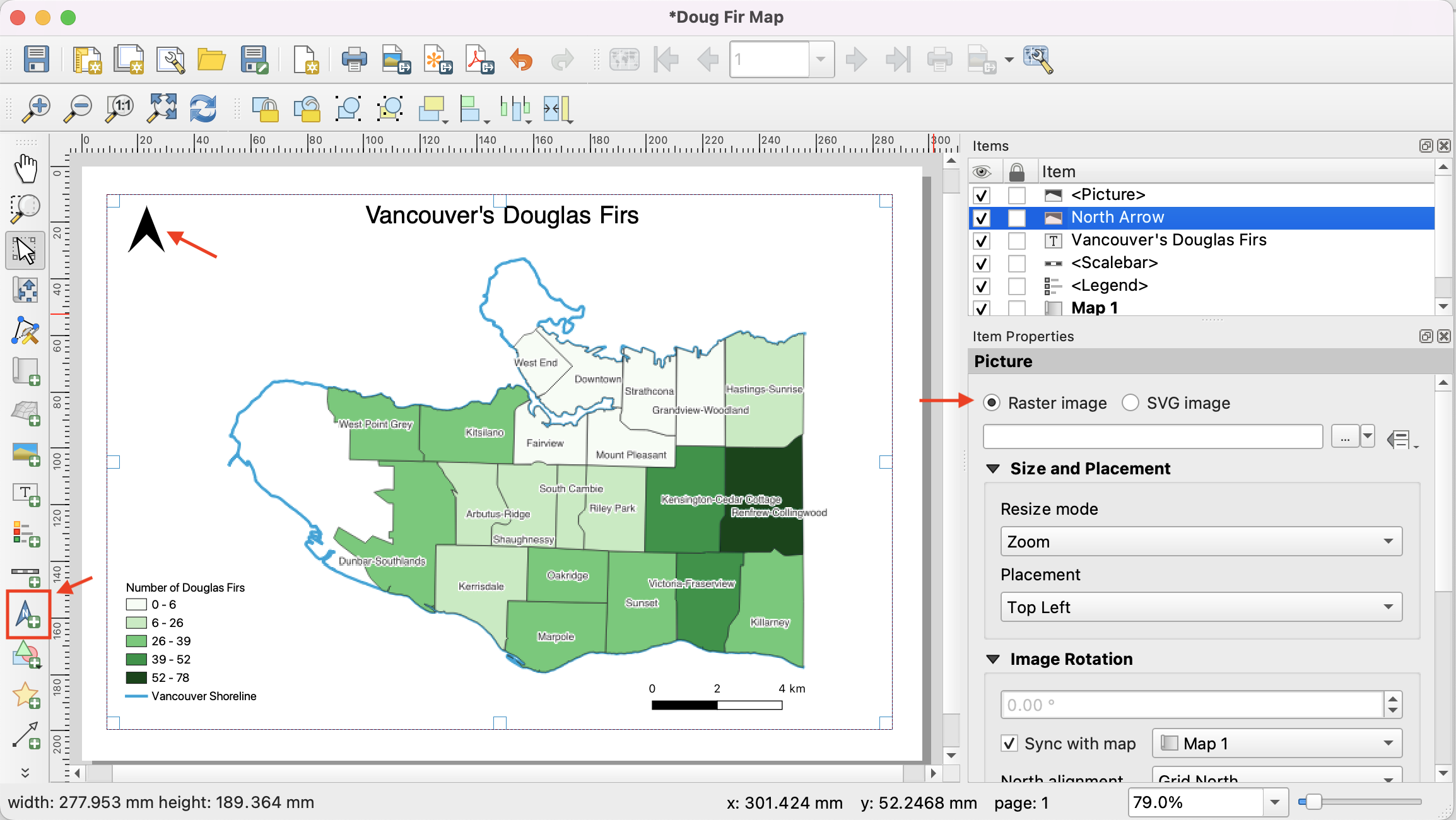

Click the Add a New North Arrow button and drag a box on your map layout to create the arrow. In Item Properties, you will notice under Picture that your north arrow is currently an SVG (Scalable Vector Graphic) image. Click ‘Raster image’ instead and see what happens.

Doug Fir Map north arrow

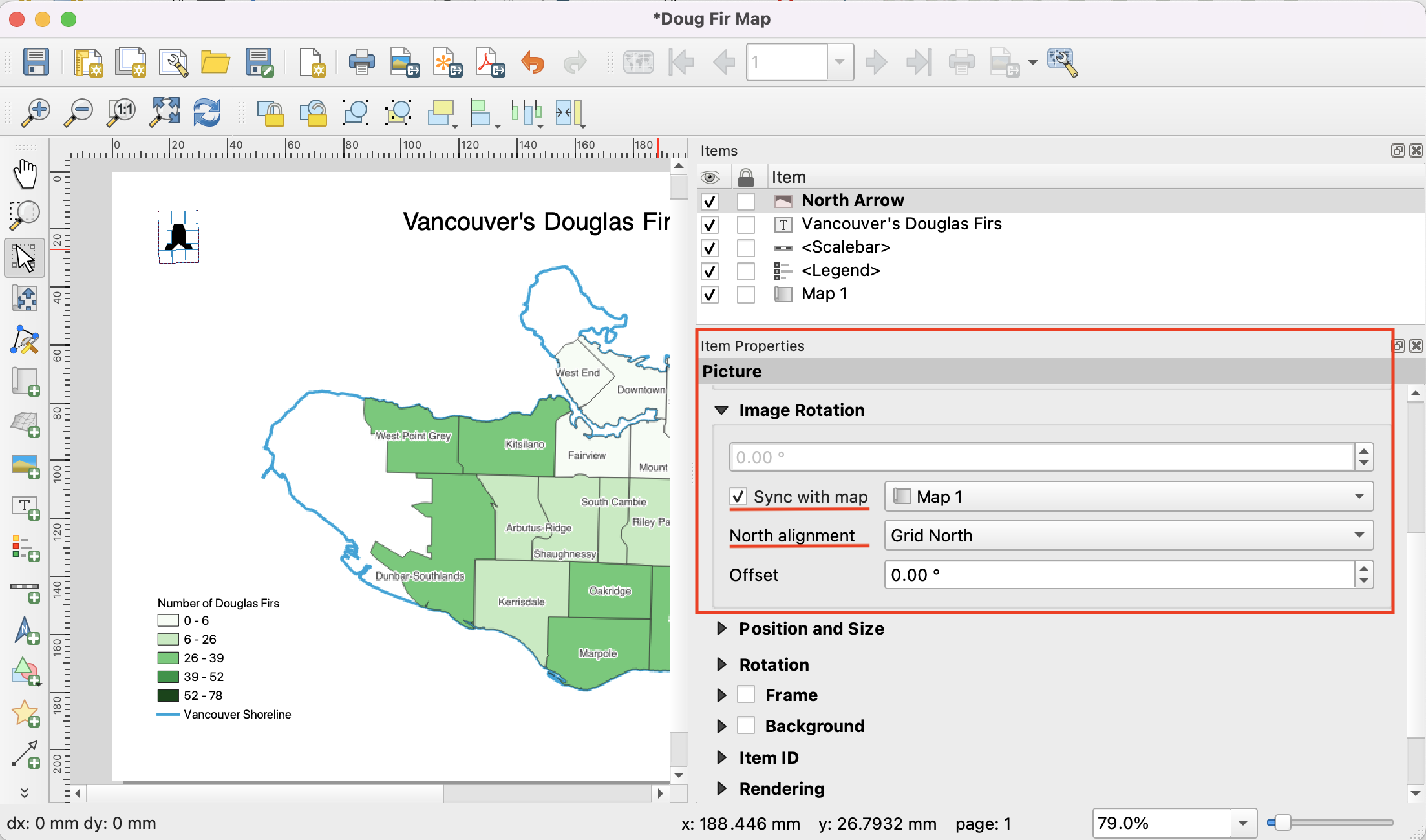

Under item properties, scroll down until you see Image Rotation. Choose Sync with map, then select the map you’d like to sync with. For type of North alignment select Grid North or True North.

Doug Fir Map north alignment

Export your map for print.

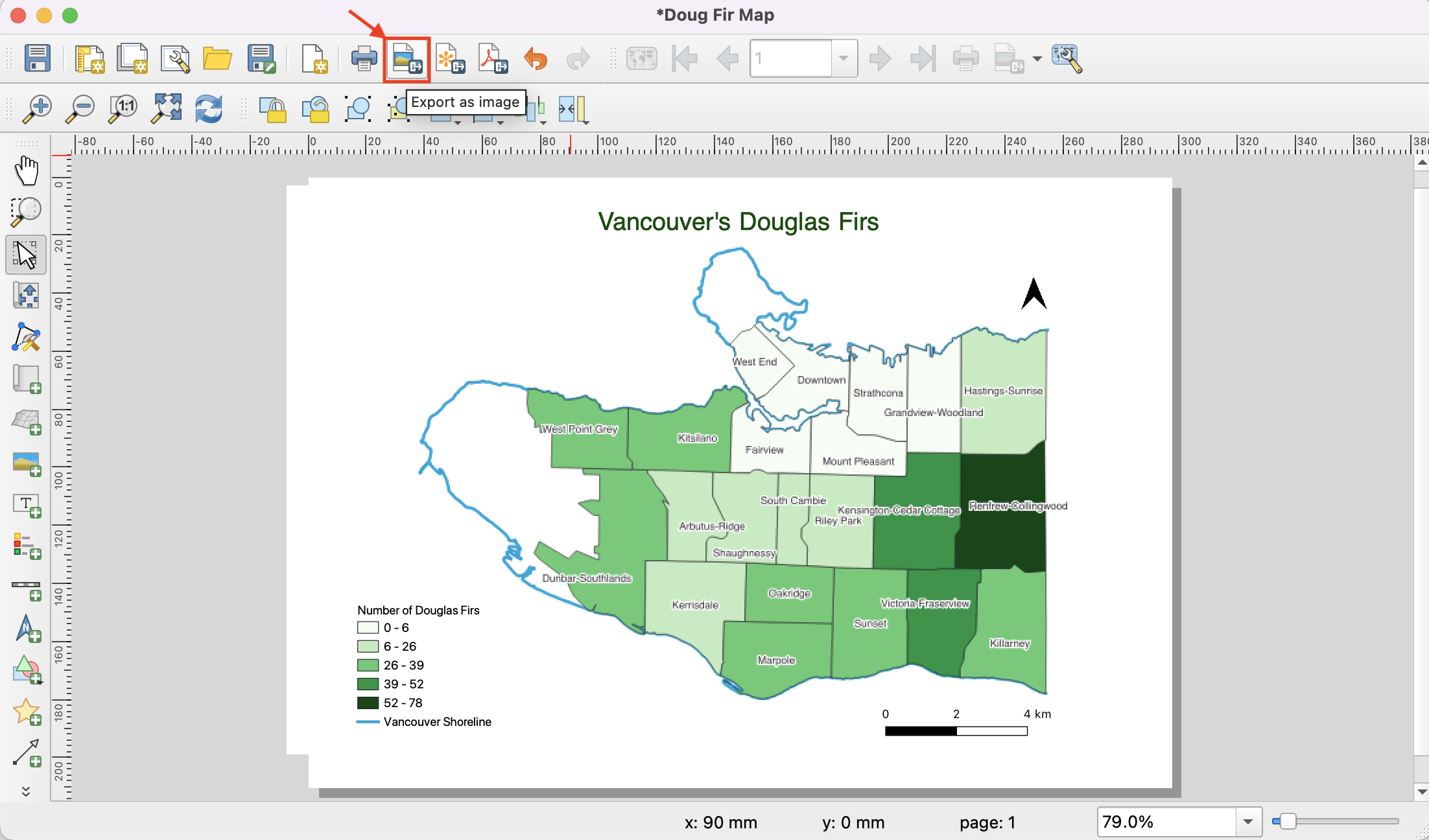

In the Print Layout Menu, click on Layout and then on Export as Image.

Export Vancouver Douglas Firs Map as image

Save your file as a .jpeg image in your project folder. (Accept the Default Export Options if a window pops up.) Now you have a static image of your map and you should get a message like this

Export success msg

Close the print layout menu. Open your map .jpeg to see how it turned out.
